RE Series Specifications

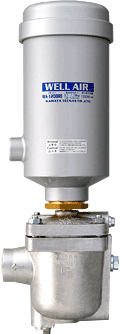

This is the RE series of WELL AIR compressed air water removers with the revolutionary collision separation system. They are equipped with a heavy-duty drain outlet.
♦ For European Version
Model name WA-400RE WA-1200RE WA-2500RE
Maximum operating flow rate : Nl/min 400 1200 2500
Operating pressure range : Mpa(bar) 0.1∼1.5 (1.0∼15.0)
Guaranteed withstand pressure : Mpa(bar) 1.5 (15.0)
Fluid temperature : ºC 5∼65
Drain exhaust section connections, diameter : Rc 1/4
Air plumbing connections, diameter : Rc 3/8 3/4 1
Weight : kg 3.78 5.38 13.10

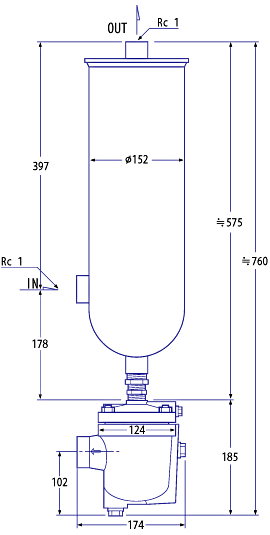

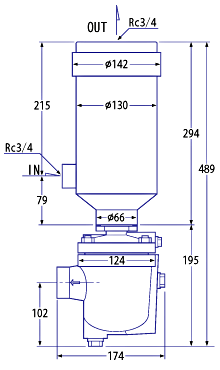

External Dimensions
WA-400RE WA-1200RE WA-2500RE
The direction of drain outlet is not always same direction. It depends on assembly situation.
For American Version
Model name WA-400RE WA-1200RE WA-2500RE
Maximum operating flow rate : cfm 14.13 42.38 88.29
Operating pressure range : psi 14.22∼213.35
Guaranteed withstand pressure : psi 213.35
Fluid temperature : degF 41∼149
Drain exhaust section connections, diameter : Rc 1/4
Air plumbing connections, diameter : Rc 3/8 3/4 1
Weight : lb 8.33 11.86 28.88

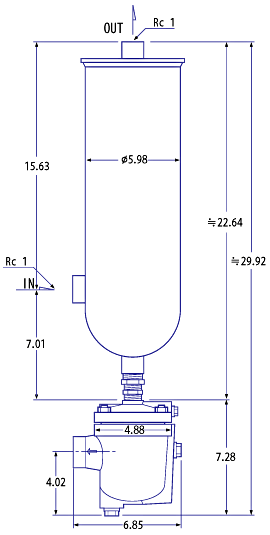

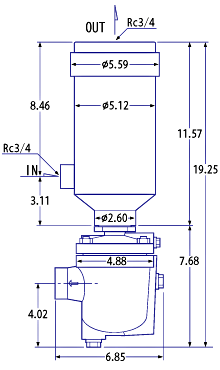

External Dimensions
WA-400RE WA-1200RE WA-2500RE
The direction of drain outlet is not always same direction. It depends on assembly situation.
