HI Series Specifications

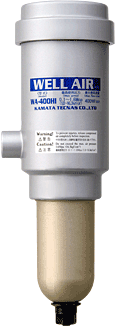

This is the HI series of WELL AIR compressed air water removers with the revolutionary collision separation system. They are for use at medium pressures, up to 1.6 Mpa (16 kgf/cm2).
♦ For European Version
Model name WA-150HI WA-400HI WA-1200HI
Maximum operating flow rate : Nl/min 150 400 1200
Operating pressure range : Mpa(bar) 0.1∼1.6 (1.0∼16.0)
Guaranteed withstand pressure : Mpa(bar) 2.5 (25.0)
Fluid temperature : ºC 5∼65
Drain exhaust section connections, diameter : Rc 1/4
Air plumbing connections, diameter : Rc 1/4 3/8 3/4
Weight : kg 0.58 1.10 2.79

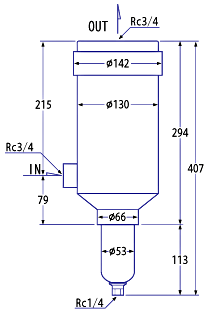

External Dimensions
WA-150HI WA-400HI WA-1200HI
♦ For American Version
Model name WA-150HI WA-400HI WA-1200HI
Maximum operating flow rate : cfm 5.30 14.13 42.38
Operating pressure range : psi 14.22∼227.57
Guaranteed withstand pressure : psi 355.58
Fluid temperature : degF 41∼149
Drain exhaust section connections, diameter : Rc 1/4
Air plumbing connections, diameter : Rc 1/4 3/8 3/4
Weight : lb 1.28 2.43 6.15

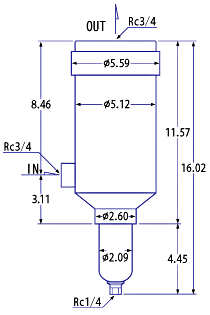

External Dimensions
WA-150HI WA-400HI WA-1200HI
