DT Series Specifications

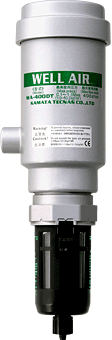

This is the DT series of WELL AIR compressed air water removers with the revolutionary collision separation system. They are best for air that contains lots of dust and oil.
♦ For European Version
Model name WA-150DT WA-400DT WA-1200DT
Maximum operating flow rate : Nl/min 150 400 1200
Operating pressure range : Mpa(bar) 0.1∼1.0 (1.0∼10.0)
Guaranteed withstand pressure : Mpa(bar) 1.5 (15.0)
Fluid temperature : ºC 5∼65
Drain exhaust section connections, diameter : Rc hose nipple φ6mm
Air plumbing connections, diameter : Rc 1/4 3/8 3/4
Weight : kg 0.59 1.11 2.79

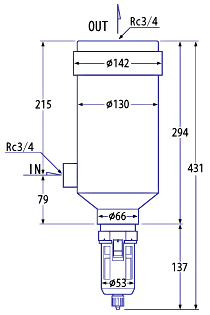

External Dimensions
WA-150DT WA-400DT WA-1200DT
♦ For American Version
Model name WA-150DT WA-400DT WA-1200DT
Maximum operating flow rate : cfm 5.30 14.13 42.38
Operating pressure range : psi 14.22∼142.23
Guaranteed withstand pressure : psi 213.35
Fluid temperature : degF 41∼149
Drain exhaust section connections, diameter : Rc hose nipple φ6mm
Air plumbing connections, diameter : Rc 1/4 3/8 3/4
Weight : lb 1.30 2.45 6.15

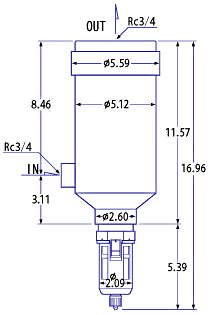

External Dimensions
WA-150DT WA-400DT WA-1200DT
